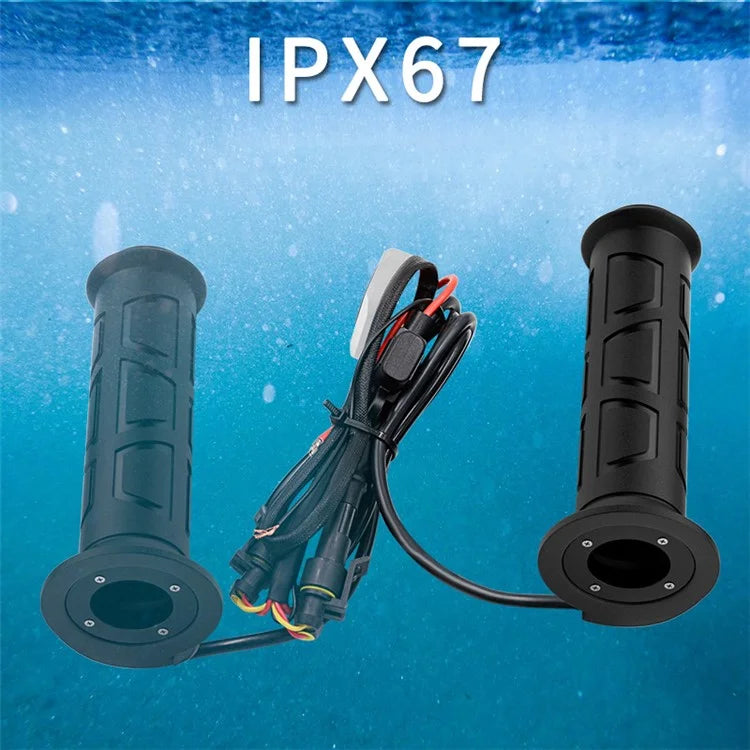

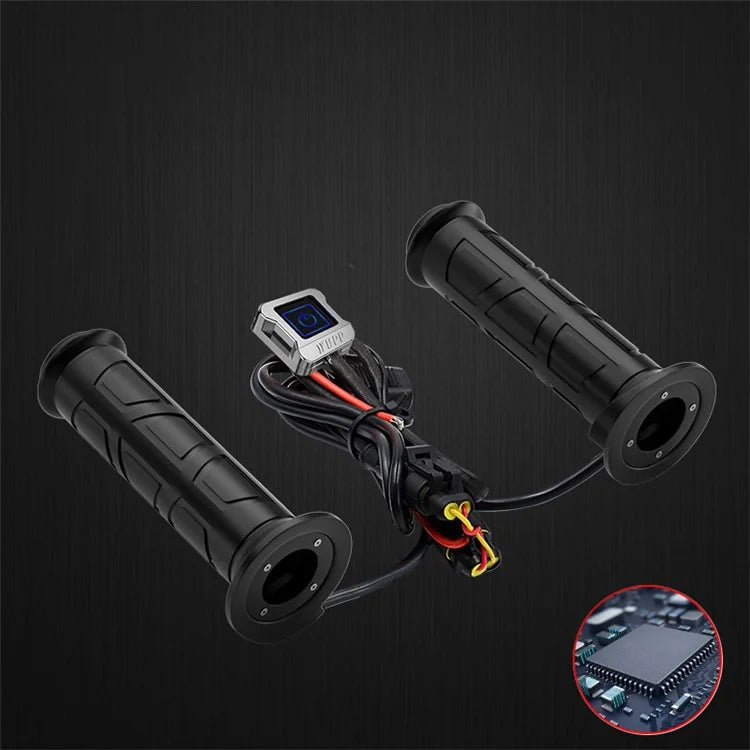

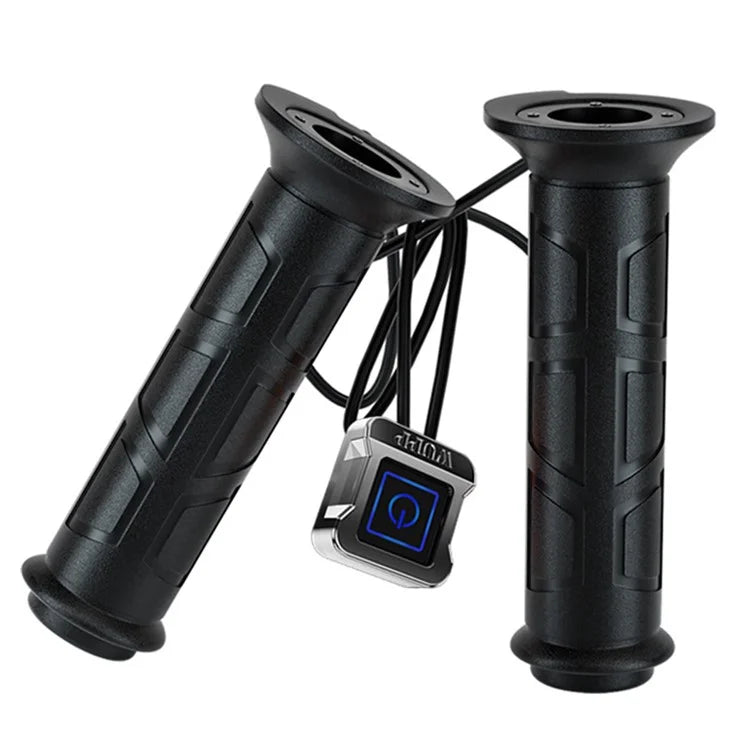

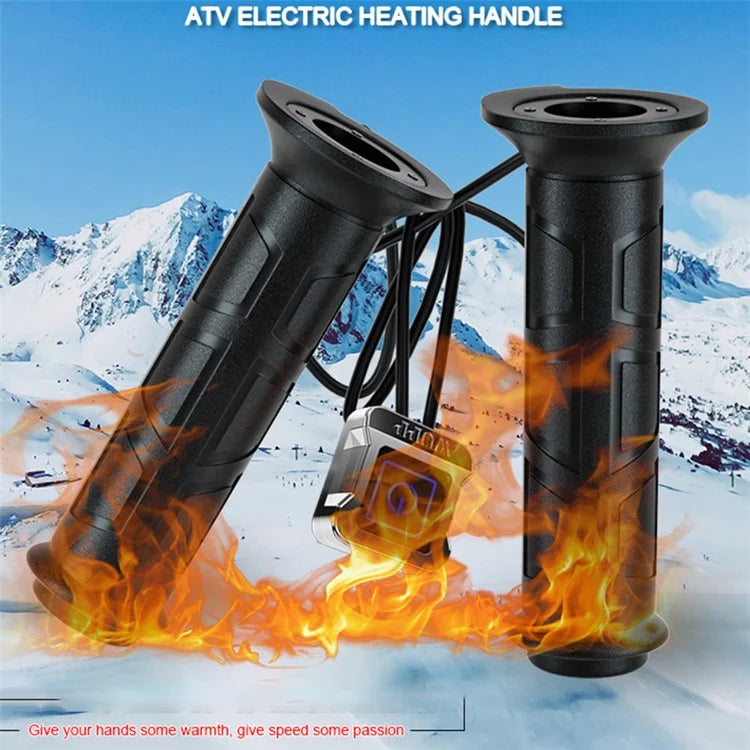

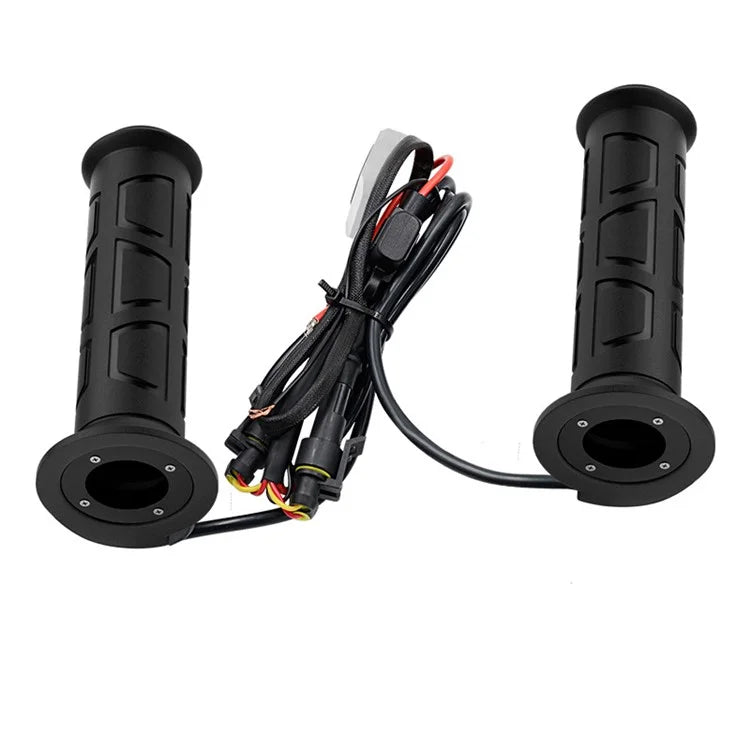

WUPP CSZH-983F2 1 Pair Intelligent Three Gear Temperature ATV Motorcycle Electric Heating Handle

• Integrated molding to prevent rain and dust from entering the interior and corroding parts, making the service life longer
• Built-in intelligent temperature control chip, three levels of adjustable temperature, intelligent temperature control
• The design can be sealed or opened, which does not affect the installation of handle end plugs and other accessories of the handle

How to use the switch:

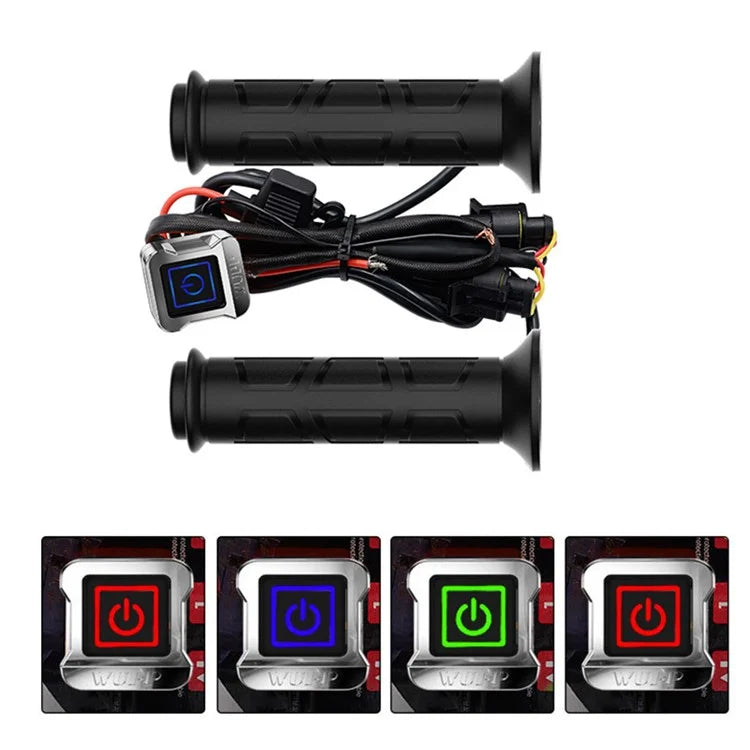

• Press and hold for 3 seconds to turn on, the red breathing light will turn on, and it will automatically turn blue when the temperature is reached. Press it once to change to blue light, the temperature is medium temperature, press twice and it will turn green, the temperature is low temperature. Press three times to turn red, which is the third gear: high temperature. Press and hold for 3 seconds to turn off

Installation:

• Remove the original handlebar
• Wet the inner hole of the left hand handle with soapy water and do not twist it too much during installation
• Connect the power cord. The red wire is connected to the positive pole and the black wire is connected to the negative pole. Please confirm before connecting. Do not connect reversely
• (Note: When installing the left hand handle, do not twist the handle too much. Excessive twisting will cause the heating wire to shift.)

Wiring method:

• Connect to the positive and negative terminals of the battery. The red wire is connected to the positive terminal + of the battery, and the black wire is connected to the negative terminal -.
• (Note: When wiring, red is connected to the positive pole and black is connected to the negative pole. If the connection is reversed, the product may be burned to damage, so when wiring, please confirm the positive and negative pole interfaces before wiring.)

Specification:

• Product model: CSZH-983F2
• Product net weight: 258g
• Product material: nitrile material
• Suitable pipe diameter: 22mm
• Input voltage: DC12V
• Product power: red light 35W, blue light 25W, green light 17W

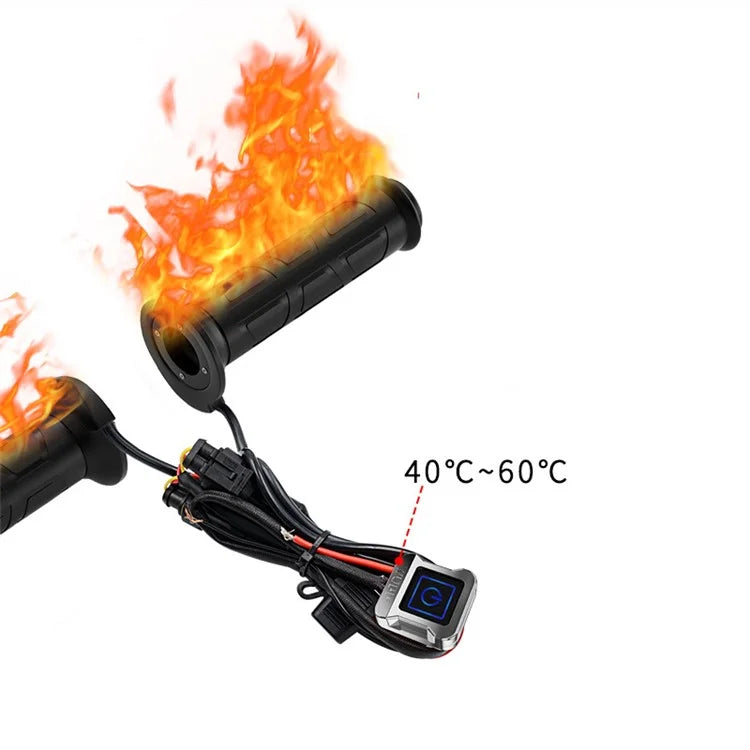

• Handlebar temperature: 40℃-60℃
• Switch type: 3-gear adjustable temperature control switch
• Applicable models: 12V ATV with handlebar diameter of 22mm
