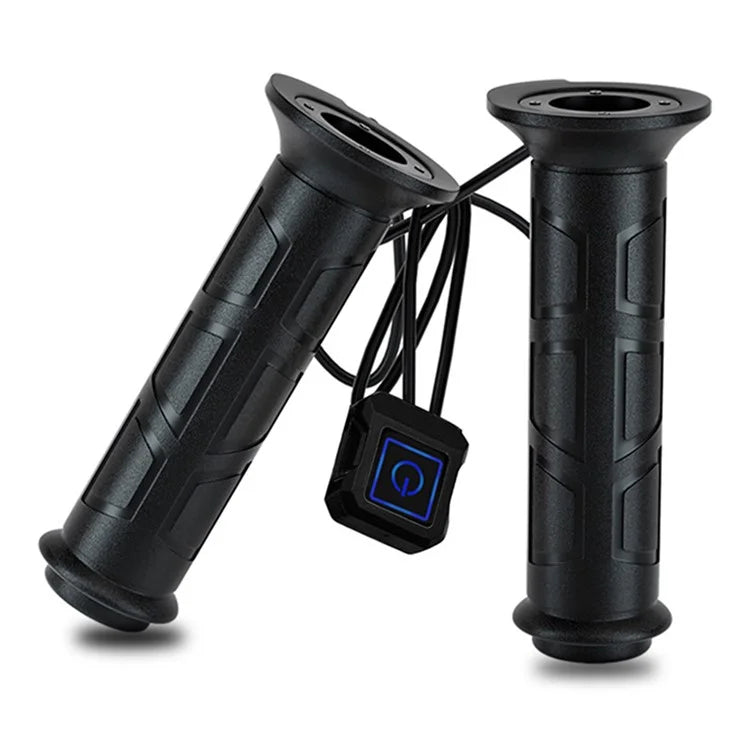

WUPP CSZH-983F1 Intelligent 3-Mode ATV Temperature Adjustable Heated Grips

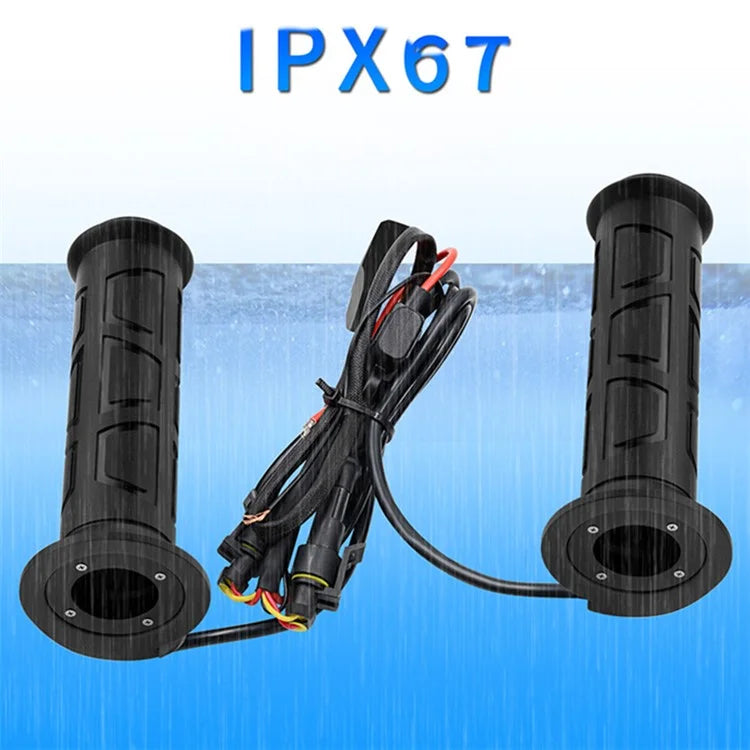

• Integrated Design: Prevents rainwater and dust from entering the interior and corroding components, ensuring a longer and more reliable lifespan
• Built-in Smart Temperature Control Chip: Features three adjustable temperature settings for intelligent temperature control, providing customized comfort
• Sealed and Passable Design: Designed to accommodate both sealed and passable configurations without interfering with the installation of handlebar plugs and other accessories
• Easy Installation: Offers a hassle-free installation process for added convenience
• Extended Riding Comfort: Enjoy enhanced comfort during rides with these intelligent three-mode heated grips

Specifications:

• Product Model: CSZH-983F1
• Product Weight: 252g
• Material: Nitrile Material
• Suitable Diameter: 22mm
• Input Voltage: DC12V

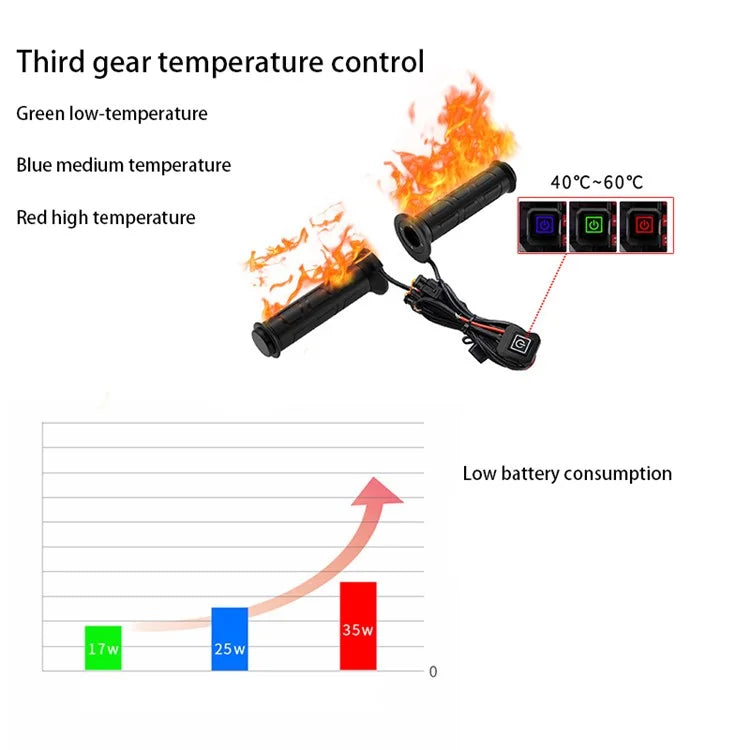

• Power: Red Light 35W, Blue Light 25W, Green Light 17W
• Handlebar Temperature: Low 40℃, Medium 50℃, High 60℃ (for reference only)
• Handlebar Type: Sealable and Passable Electric Heated Grips
• Switch Type: Multi-Mode Adjustable Temperature Control Switch
• Applicable Vehicle Models: 12V ATVs with handlebar diameters of 22mm
• Operating Instructions:
• Power On: The red, blue, and green lights each flash once and then turn off
• Operating Status: Indicator light stays on (High: Red light stays on, Medium: Blue light stays on, Low: Green light stays on)
• Long Press the Power Button for 3 Seconds: Shutdown
• Single Press the Power Button: Switch Gear

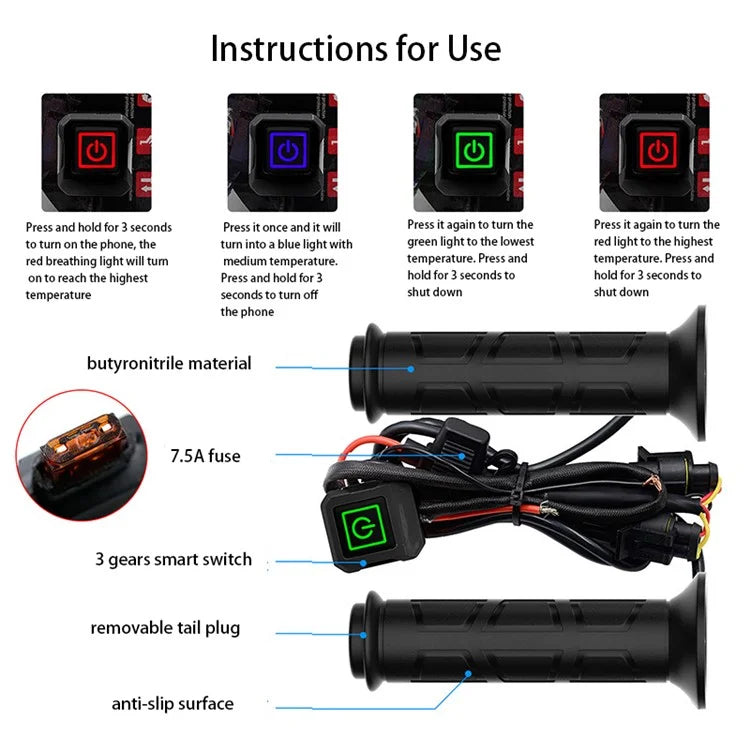

Switch Usage:

• Long press for 3 seconds to turn on, the red breathing light turns on. After reaching the temperature, it will automatically change to blue. Press lightly once to switch to blue light with medium temperature. Press twice to switch to green light with low temperature. Press three times to switch to red light for three high-temperature levels. Long press for 3 seconds to turn off.

Installation Instructions:

• Remove the original handlebars from the vehicle.
• Wet the inner hole of the left handlebar with soapy water. When installing, do not twist too forcefully.
• Connect the power cord, with the red wire to the positive pole and the black wire to the negative pole. Please confirm before connecting and do not reverse the connections.

Note: When installing the left handlebar, do not twist it excessively, as excessive twisting can cause displacement of the heating wire.

Product Wiring Method:

• Connect to the positive and negative terminals of the battery. The red wire connects to the battery's positive pole (+), and the black wire connects to the battery's negative pole (-).

Note: When wiring, connect the red wire to the positive pole and the black wire to the negative pole. If connected incorrectly, the switch may burn out, but the handlebars will still heat up. Therefore, when wiring, please make sure to correctly identify the positive and negative terminals to prevent burning out.
