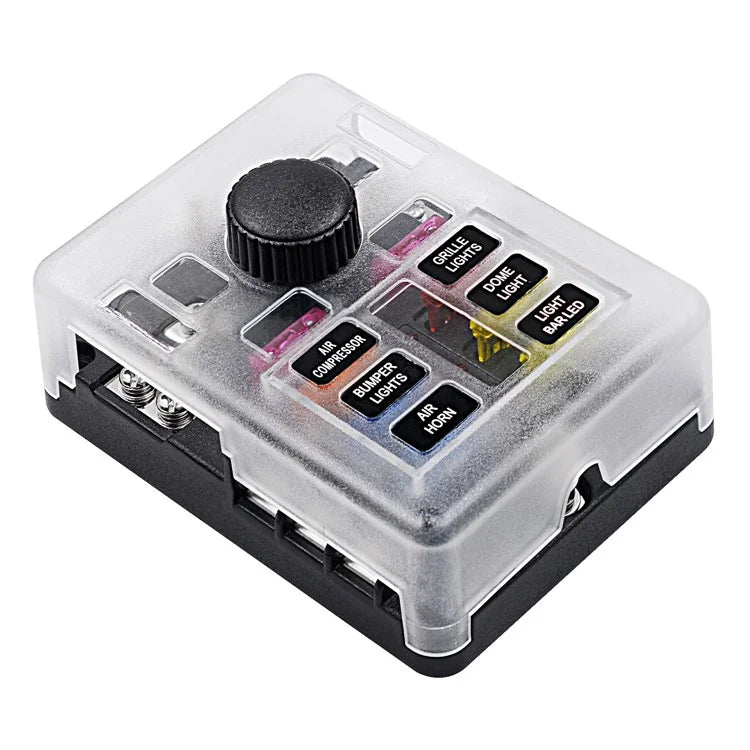

WUPP CS-3394A1 6 Way Blade Fuse Block with Negative Bus LED Indicator for Car Boat Van SUV

• Durable and Eco-Friendly Material: Made with PBT flame-retardant material that is resistant to high and low temperatures, ensuring excellent mechanical strength, insulation, heat resistance, and flame retardancy, preventing issues like breakage, deformation, burning, or short circuits
• Corrosion-Resistant Conductivity: All busbars and fuse clips are made of nickel-plated copper, offering superior corrosion resistance and excellent electrical conductivity
• Stainless Steel Fasteners: Equipped with stainless steel fasteners, the fuse box uses screw-tightened input and output terminals for faster installation, while the fuse box itself is secured with self-tapping screws for easier and safer mounting

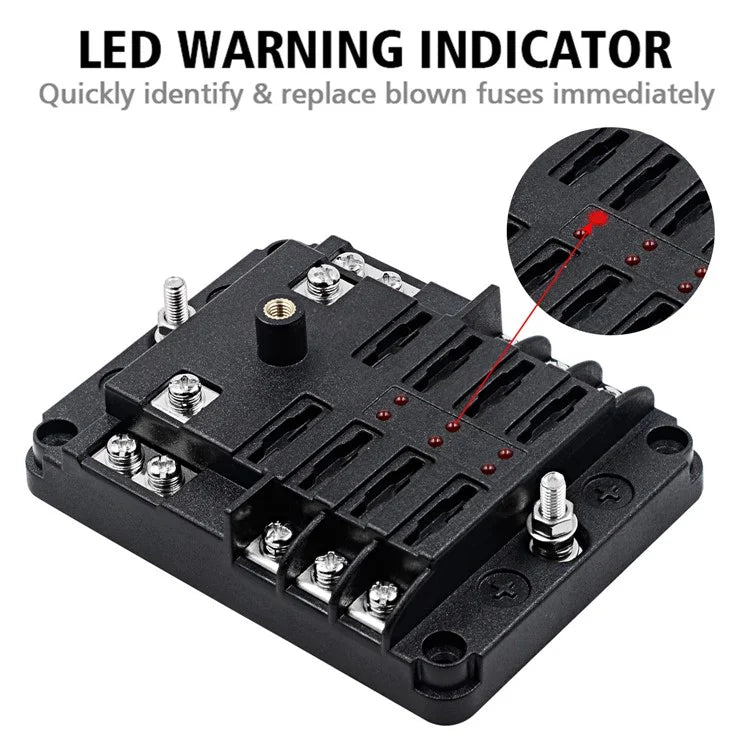

• LED Indicator for Easy Detection: Each fuse has a corresponding red LED indicator, which lights up when the fuse blows, allowing for immediate identification of the faulty fuse and quick resolution
• Convenient Labeling System: Comes with stickers to label each connected electrical appliance, so when a fuse blows and the LED lights up, you can instantly identify the affected appliance, saving time and effort

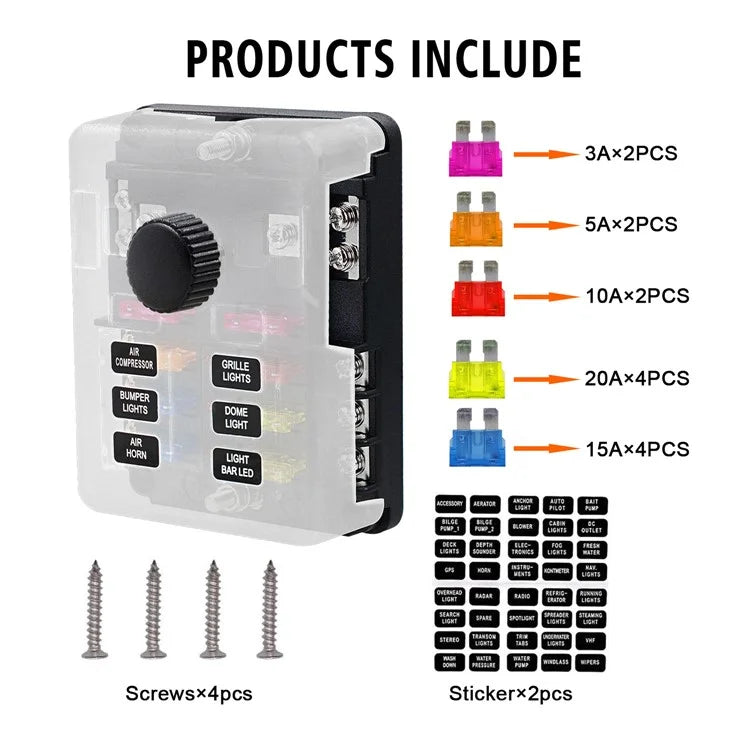

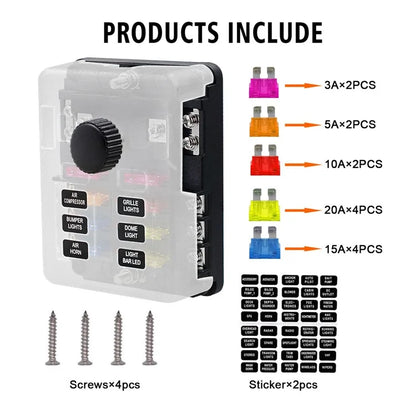

• Extra Fuses Provided: Supplied with double the fuses, allowing for quick replacement if a fuse burns out. Multiple amperage options are included, so you can choose the appropriate fuse for the specific electrical appliance

Specification:

• Model Number: CS-3394A1
• Net Weight: 227g

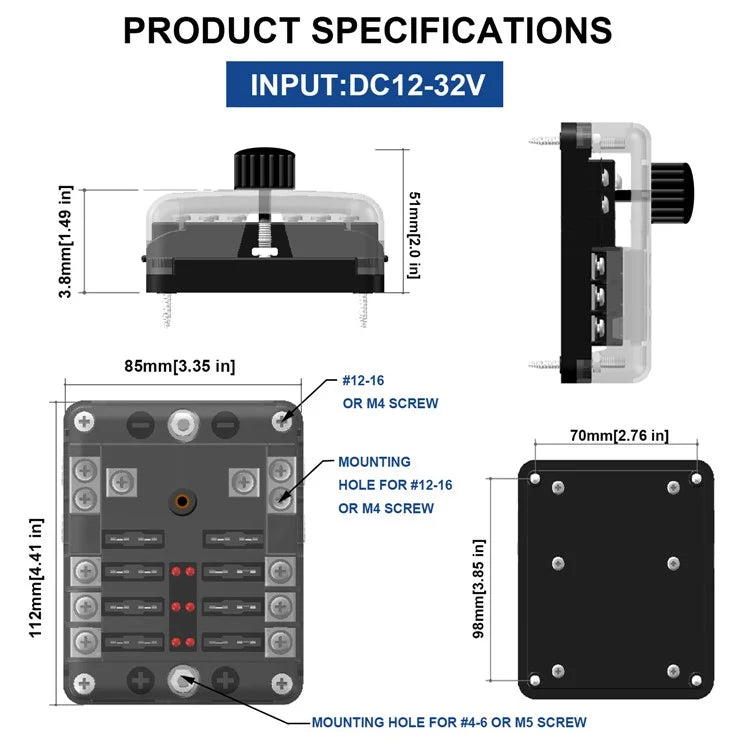

• Product Dimensions: 112x85x51mm

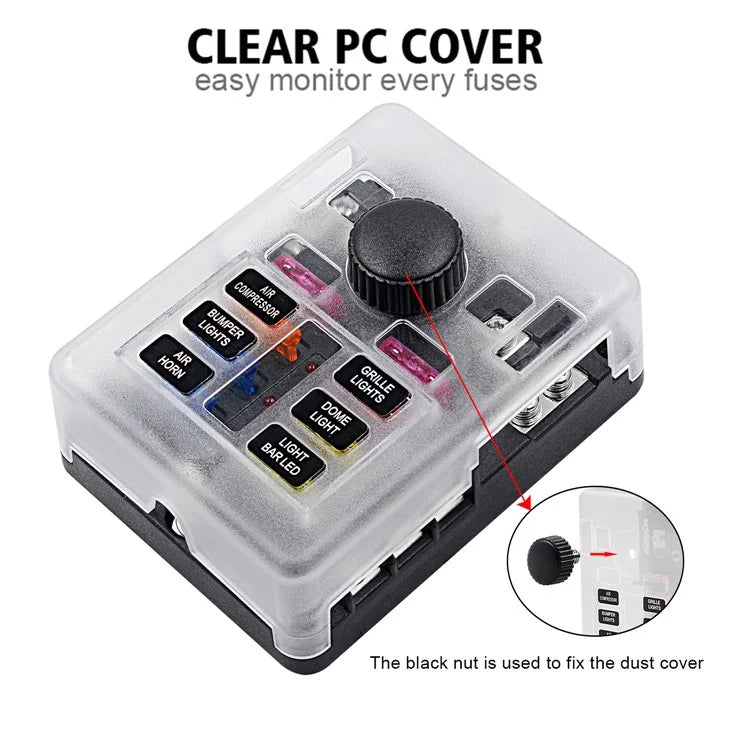

• Material: PBT body, PC waterproof and dustproof cover, nickel-plated copper connection terminals, PPX40 stickers
• Input Rated Voltage: 32V
• Input Rated Current: 100A
• Maximum Output Current: 30A per circuit
• Indicator Light Color: Red

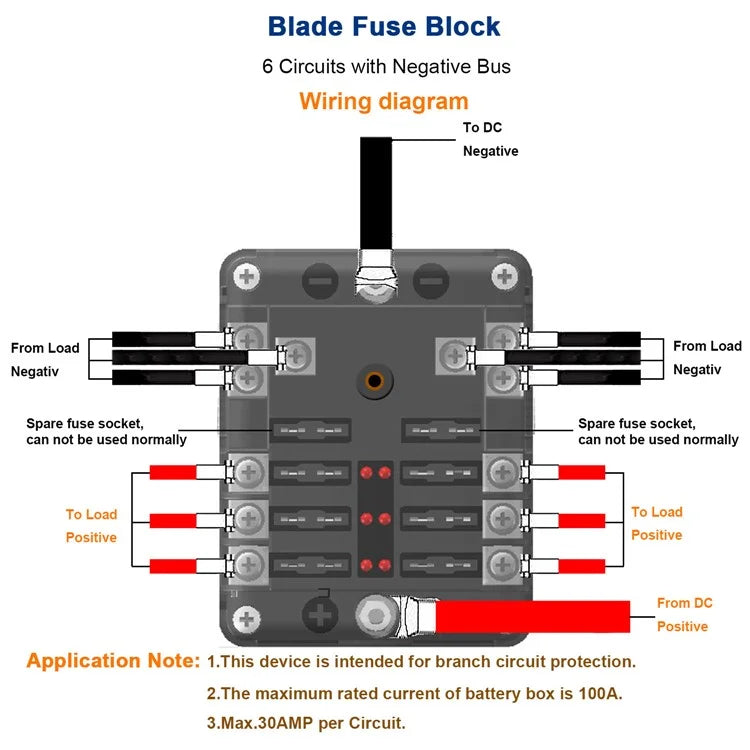

• Main Line Terminal: M5 threaded studs
• Main Line Wire: #4-6
• Single Line Terminal: M4 threaded studs
• Single Line Wire: #12-16
• Indicator Light Function: When the red LED light is on, it indicates that the fuse has blown and needs to be replaced in order to continue operation
• Installation Range: Can be installed on cars, SUVs, RVs, buses, yachts, boats, etc.
• Application Range: Can be directly connected to any electrical appliance on the car/boat, such as roof lights, car headlights, marker lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.
• Fuse Function: When the circuit experiences a fault or abnormality, the current rises continuously. This elevated current may damage some important or valuable components in the circuit, or even burn out the circuit and cause a fire. The fuse protects electronic devices from overcurrent and prevents severe damage caused by internal faults. Each fuse has a rated specification, and when the current exceeds the rated specification, the fuse will blow. If the fuse is correctly installed in the circuit, it will blow and cut off the current when the current rises to a certain level and temperature, thus protecting the safe operation of the circuit
