TXB055 USB3.1 Type-C + Dual USB3.0 Type-A PCI-E Expansion Card

• Blazing-Fast Speeds: This expansion card supports SuperSpeed USB 10Gbps and SuperSpeed USB 5Gbps, delivering lightning-fast data transfer rates
• Comprehensive USB Support: The card is compatible with High-Speed 480Mbps, Full-Speed 12Mbps, and Low-Speed 1.5Mbps USB standards, ensuring backward compatibility with USB 3.0, USB 2.0, and USB 1.1 devices
• Versatile Power Delivery: The card can draw power from the PCI Express interface or a 4-pin power connector, providing up to 15W (5V/3A) for the USB Type-C port and up to 4.5W (5V/900mA) for the USB Type-A ports
• xHCI Specification Compliance: The expansion card adheres to the eXtensible Host Controller Interface (xHCI) specification 1.1, enabling seamless integration and compatibility with a wide range of operating systems

Specifications:

• Model: TXB055
• Chipset: VIA/VL805
• Ports: 2 x USB Type-A, 1 x USB Type-C
• Interface: PCI Express 1x Slot

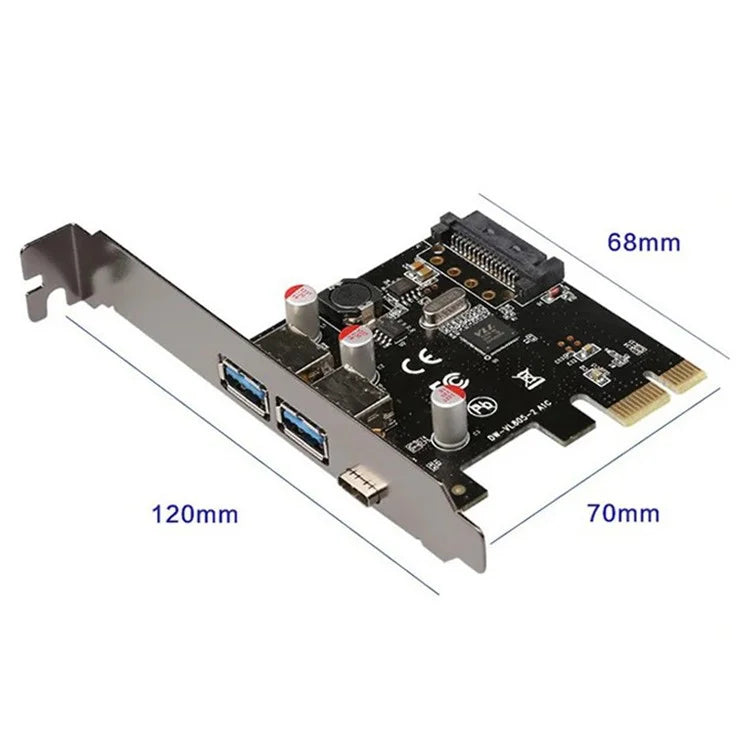

• Dimensions: 120 x 70 x 68mm
• Operating Temperature: 0 to 50℃
• Storage Temperature: 0 to 80℃
• Relative Humidity: 10% to 90% (non-condensing), 5% to 90% (non-condensing) for storage
• Supported Operating Systems:
• Windows 10, 8/8.1, 7, Vista, XP (32/64-bit)
• Windows Server 2012, 2008 R2, 2003 (32/64-bit)
• For MacOS 10.x (Intel-based, tested up to 10.9)
• Linux 2.4.x and later (tested up to 3.5)
