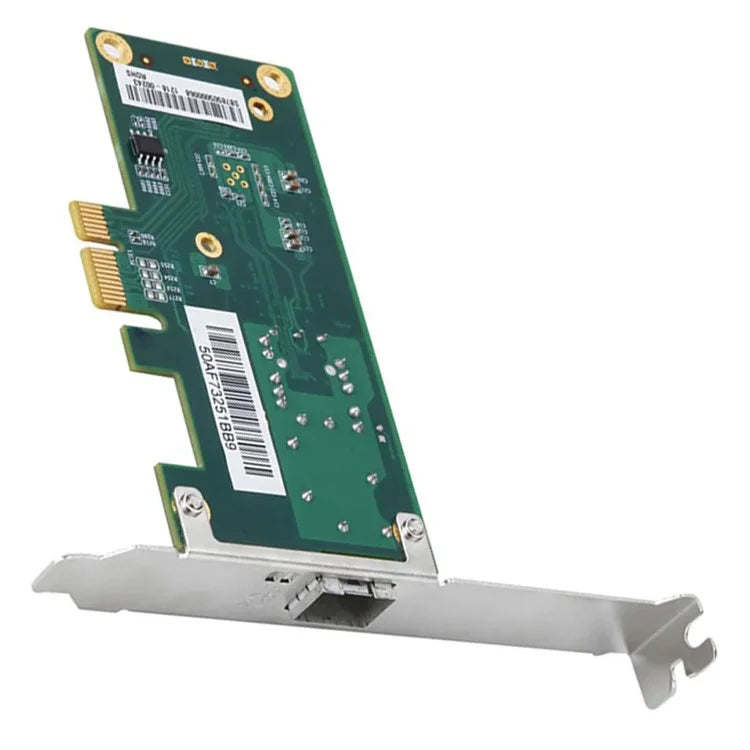

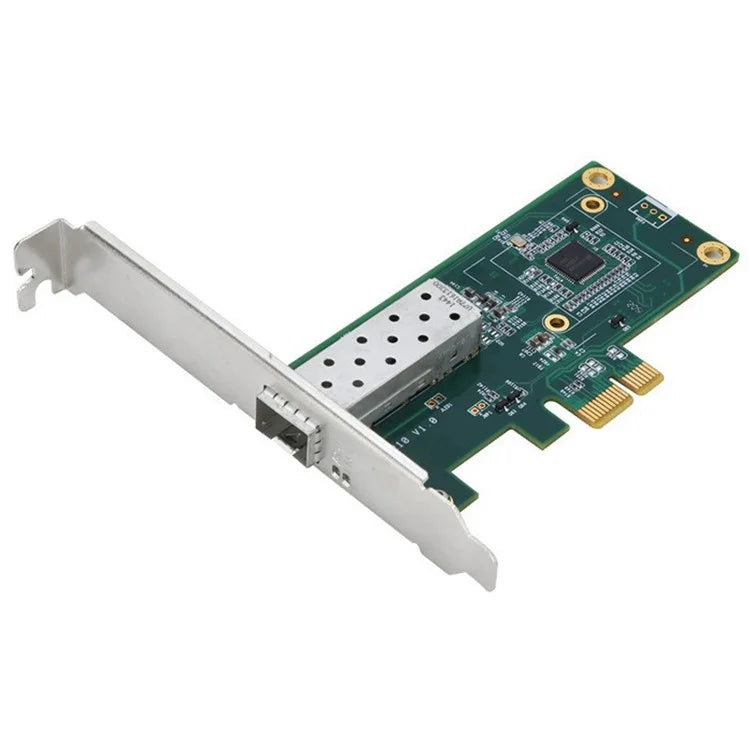

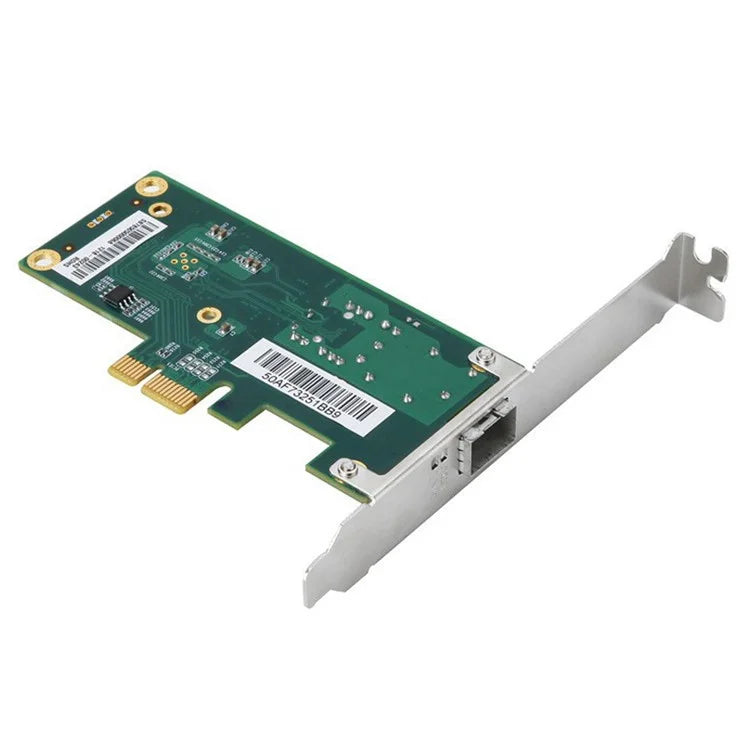

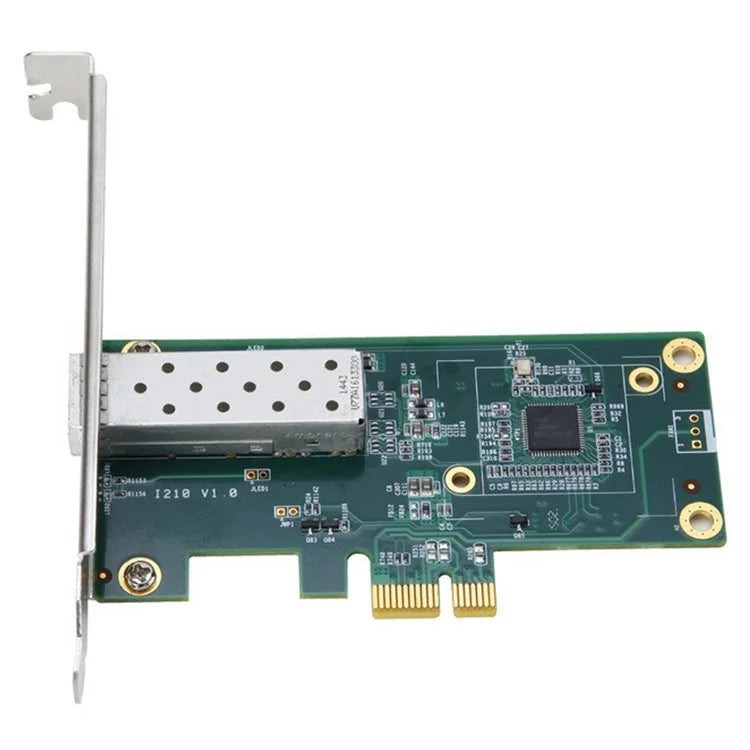

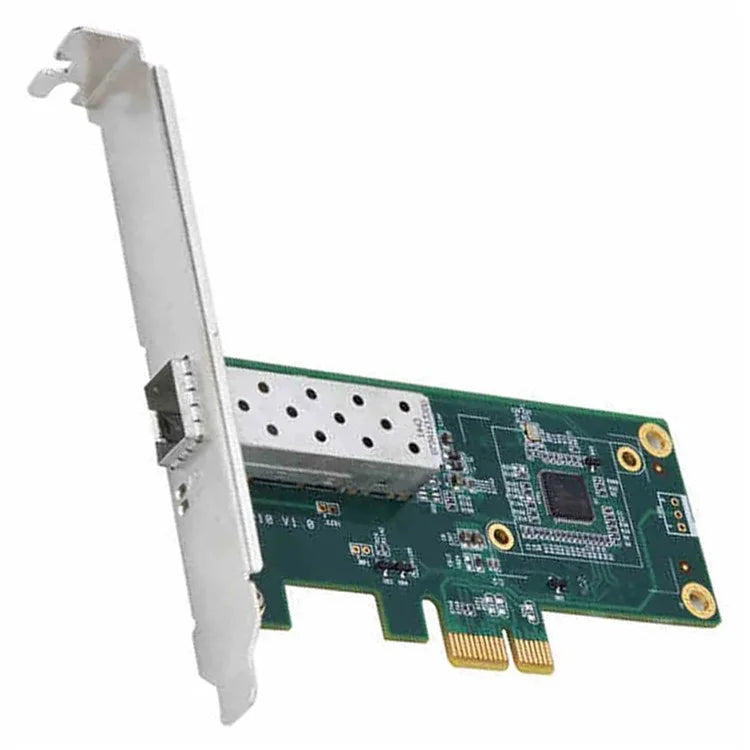

TXA026 I210 No Disc ESXI PCI-E Network Card Server Gigabit Ethernet Adapter
TXA026 I210 No Disc ESXI PCI-E Network Card Server Gigabit Ethernet Adapter
The Ethernet Controller I210 (I210) is a single-port, compact, low-power component supporting GbE designs. The I210 provides a fully integrated GbE media access control (MAC), physical layer (PHY) port and an SGMII/SerDes port that can connect to an external PHY. I210 supports PCI Express* [PCIe v2.1 (2.5GT/s)]. The I210 implements 1000BASE-T using an integrated PHY. It can be used in server system configurations such as rack-mount or pedestal servers, in an add-on network card or LAN motherboard (LOM) design. Another possible system configuration is to use the blade server as an onboard board or mezz card. It can also be used in embedded applications such as switching add-in cards and network devices.
- PCIe v2.1 (2.5 GT/s) x1 with switching voltage regulator (iSVR)
- Integrated non-volatile memory (iNVM)
- Three single-port SKUs: SerDes, Copper, Copper IT
- Value Part (Ethernet Controller I211)
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Advanced Features:
- Audio and video bridging
- IEEE 1588/802.1AS precise time synchronization
- IEEE 802.1Qav Traffic Shaper (with software extensions)
- large frame
- Interrupt conditioning, VLAN support, IP checksum offloading
- PCIe OBFF (Optimized Buffer Flush/Fill) to improve system power management
- 4 send and 4 receive queues
- RSS and MSI-X reduce CPU utilization in multi-core systems
- Advanced cable diagnostics, automatic MDI-X
- ECC—Error correction memory in the message buffer
- Four software-definable pins (sdp)
- NC-SI greater bandwidth through
- SMBus A low-speed serial bus used to carry network traffic
- Flexible firmware architecture and secure Flash updates
- MCTP over SMBus/PCIe
- OS2BMC/CEM (can be enabled via external Flash)
- PXE and iSCSI boot
Specification:
- Chipset: Intel I210 Ethernet Controller
- Port number: SFP * 1
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE 802.1q, IEEE802.3ab
- Data rate: 10/100/1000Mbps
- Interface: PCI express 1x
- LED indicator:10/100/1000Mb (Link/Act)
- Size: 103.5*54*13mm
- Supported operating systems:
- Windows 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP(32/64), 2000
- Windows Server 2012, 2008, R2, 2003(32/64)
- for Mac OS 10.x (Intel-based, tested to 10.9)
- Linux 2.4.x and higher (tested to 3.5)
- Environment:
- Working temperature: 0℃-70℃
- Relative humidity: 10%-90% (no condensation)
- Storage temperature: -0℃-80℃
- Relative humidity: 5%-90% (no condensation)
- Other functions:
- VLAN support
- PXE and Iscsi boot
