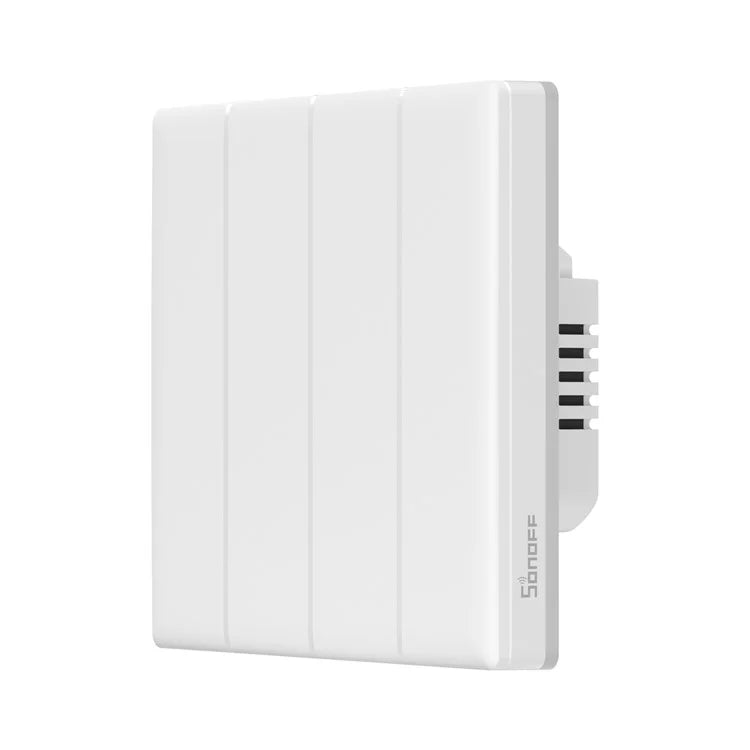

SONOFF TX Ultimate RGB Light Smart Touch Wall Switch Support WiFi, eWeLink-Remote
SONOFF TX Ultimate RGB Light Smart Touch Wall Switch Support WiFi, eWeLink-Remote
- Full Touch Operation: Unlike conventional touch switches, the TX Ultimate features an enlarged touch-sensitive area that covers almost the entire panel, allowing for easy on/off operation with just a light press

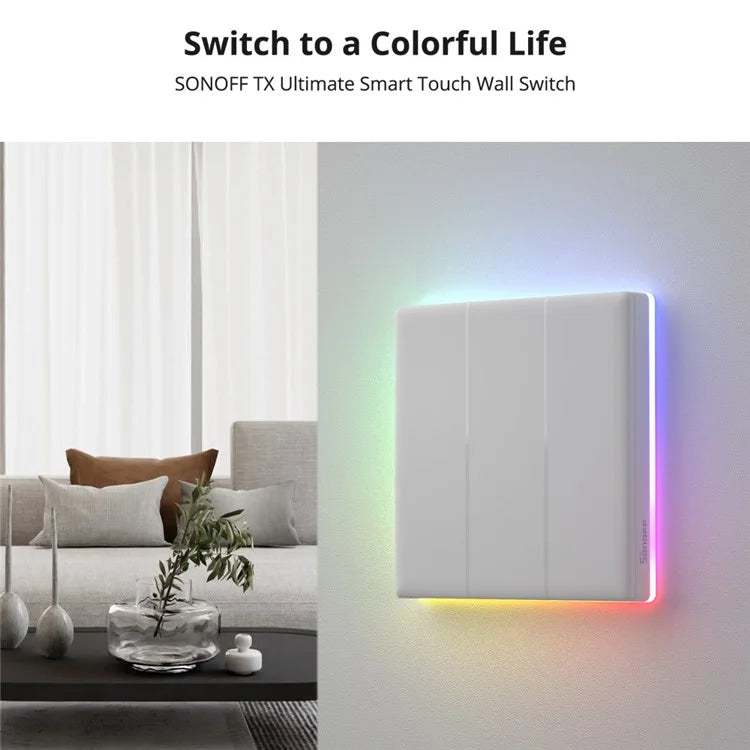

- Smart LED Light: Encircled with a ring of RGB color lights, it serves not only as an indicator for switch status but also as a night light or ambiance lighting
- Multi-Sensory Touch Experience: The TX Ultimate integrates LED lights, a speaker, and a built-in motor, offering a combined effect of light transitions, sound feedback, and panel vibration upon pressing

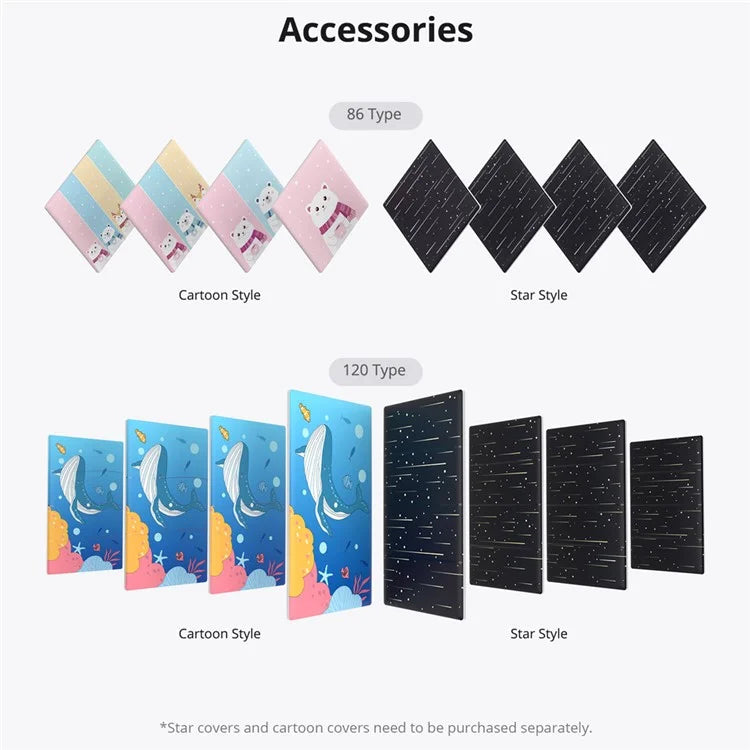

- Interchangeable Switch Covers: Offers customizable options with replaceable covers in star and cartoon styles, allowing for a match with various interior designs. Additional panels can be considered for purchase to suit different decoration styles
- eWeLink-Remote Control: As a smart switch, the TX Ultimate incorporates gateway functionality for "eWeLink-Remote" control. It requires pairing with S-MATE or the R5 scene remote controller to utilize the "eWeLink-Remote" control features (Not Included)
Specifications:
| Model | T5-4C-86 | T5-4C-120 |
| Input | 100-240V ~ 50/60Hz Max 16A | |
| Output | 100-240V ~ 50/60Hz Max 4A/Gang 16A/Total | |
| Max. Power | 960W Max@240V/Gang, 3840W/Total | |
| LED Load | 150W Max@240V/Gang, 75W Max@100V/Gang | |
| Gang | 1-Gang/2-Gang/3-Gang/4-Gang | |
| MCU | ESP32 | |
| Certification | CE/SRRC/RoHS | |
| Size | 86 x 86 x 39mm | 120 x 74 x 39mm |
| Weight | 181g | 210g |
| Casing Material | PC+CRS | |
| App OS | Android & iOS | |
| Wi-Fi | IEEE 802.11 b/g/n20/n40 2.4GHz(2400MHz-2483.5MHz) | |
| Bluetooth | 4.2 BLE (2400MHz-2483.5MHz) | |
| Antenna | FPC board with antenna | |
| Security Mode | WPA/WPA2 | |
| Encryption Type | TKIP/WEP/CES | |
| Applicable Place | Indoor | |
| Working Temperature | -10℃ ~ 40℃ | |
| Working Humidity | 5%-95%RH, non-condensing | |
| Working Height | Less than 2000m | |
| Installation Method | Embedded mounting box | |
| Installation Type | Screws installation | |
| Wiring Way | N and L | |
| Wire Diameter | 1m㎡-4m㎡AWG17-AWG11 | |
