MESTEK CT02 Digital Coating Thickness Gauge 0-1500um Fe / NFe Thickness Meter, Basic Model
MESTEK CT02 Digital Coating Thickness Gauge 0-1500um Fe / NFe Thickness Meter, Basic Model
- During measurement, instrument automatically identifies the metal properties of the base material, screen shows "Fe", means base material is magnetic, steel, iron, etc; Screen shows "NFe",means substrate is non-magnetic material, aluminum, aluminum alloy, copper, etc.
- Short press the MODE key to select measure mode (Single/Continuous)
- After power on, press the power key briefly to select the measurement unit um/mil
- Support data clearing function
- When measuring, screen displays value, short press the MAX/MIN key to lock the upper or lower limit value. The device will lock the upper or lower limit value measured on the surface of the substrate after multiple measurements

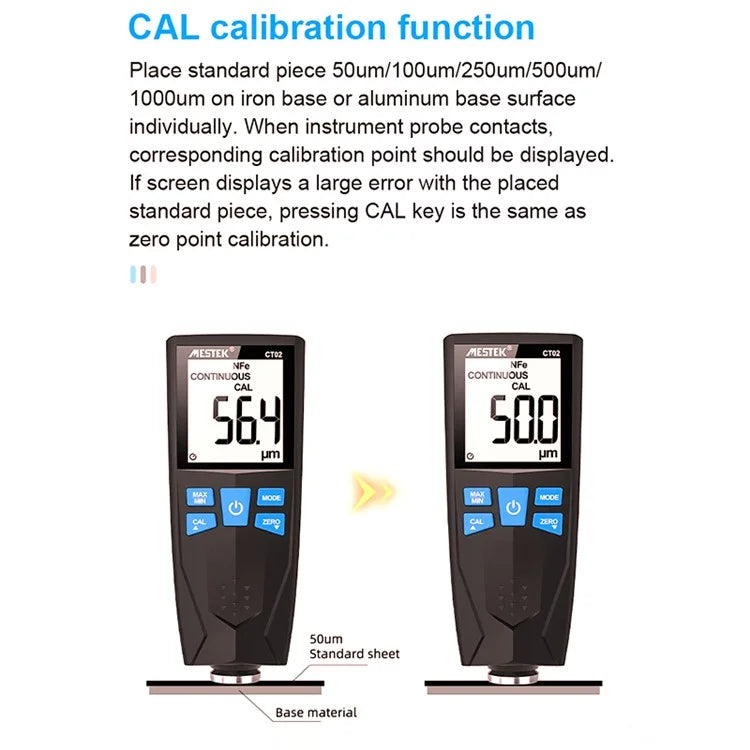

- Place standard piece 50um/100um/250um/500um/1000um on iron base or aluminum base surface individually. When instrument probe contacts, corresponding calibration point should be displayed. If screen displays a large error with the placed standard piece, pressing CAL key is the same as zero point calibration

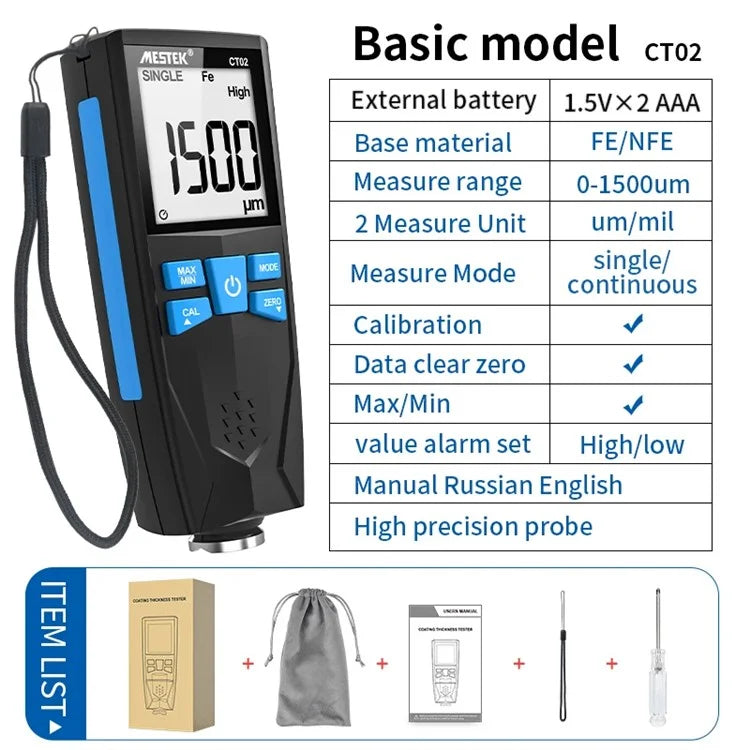

Specifications:
- Type: CT02 Basic model
- Power: 1.5V x 2 AAA battery (not included)
- USB: No
- Weight: about 95g (excluding battery)
- Display: LCD
- Measuring base: Iron base or aluminum base
- Sampling method: Iron base: magnetic induction; Aluminum base: eddy current effect
- Measuring range: 0-1500um
- Resolution: 0.1um
- Accuracy: Iron base or aluminum base/±(3%+2um)
- Automatic shutdown: About 10 minutes
- Measurement mode: single/continuous
- Unit: um/mil
- The radius of the minimum convex curvature: 5mm
- The radius of the minimum concave: 50mm
- The diameter of the minimum measunng area: 20mm
- The minimum thickness of base material: Iron base or 0.5mm/aluminum base 0.3mm
- Working current: About 30mA
- Working environment: 0~50℃/0~80%RH
