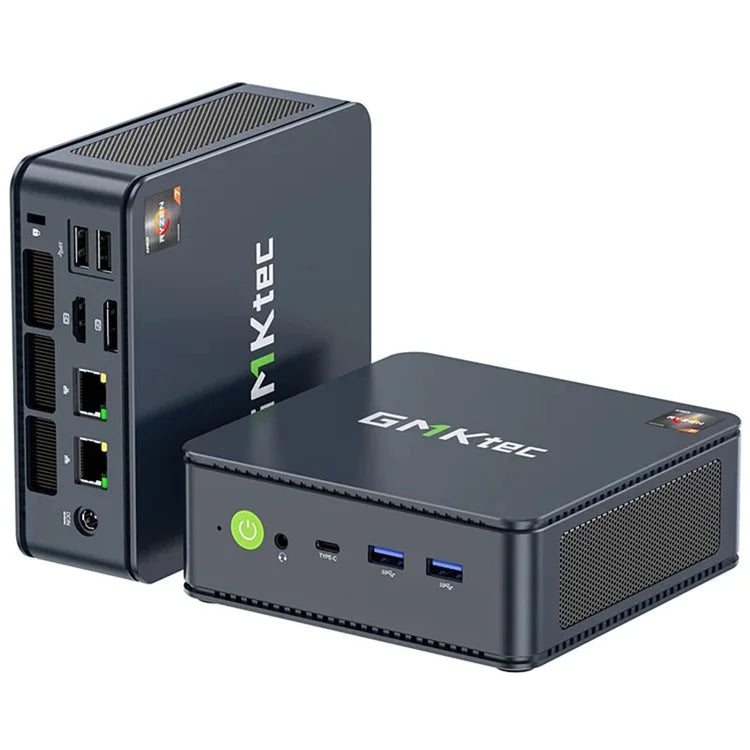

GMKTEC M5 Mini PC 16GB+512GB AMD Ryzen 5700U Micro PC Gamer Desktop Computer, EU Plug

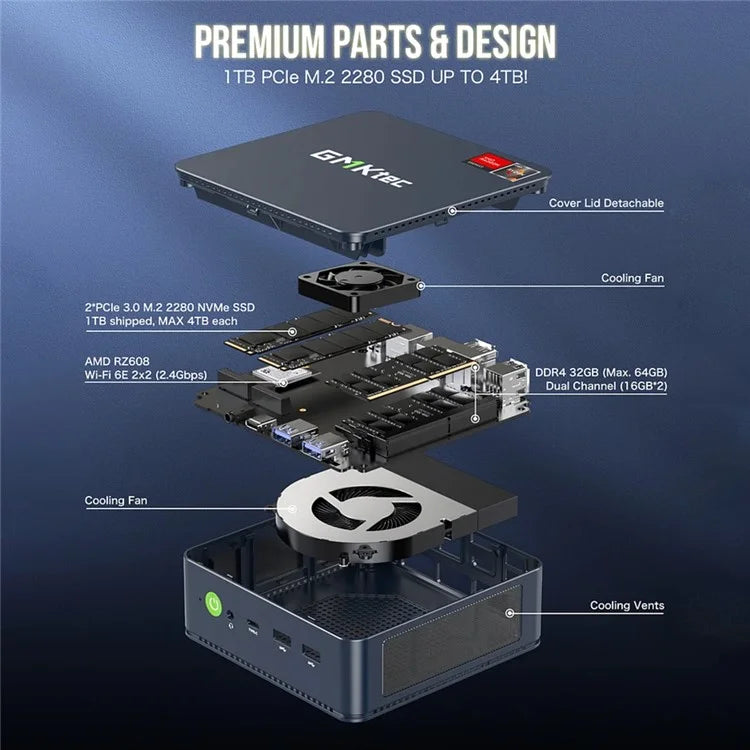

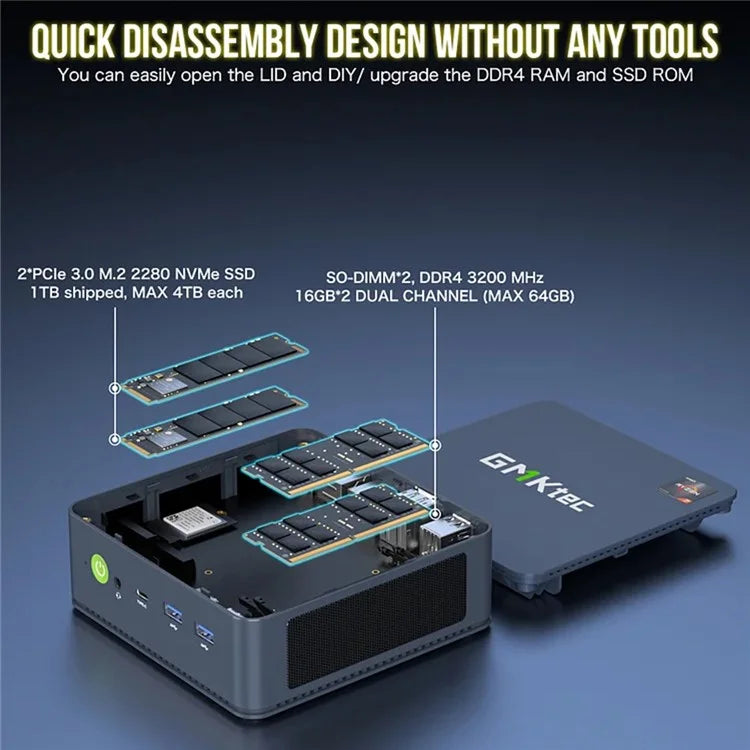

• Original convenient quick dismantling design, SSD/DDR easily removed, convenient for expansion and replacement
• Innovative late-type radiator design, dual stereo surrounding air intake, quieter and cooler; Intelligent fan control/dustproof design extends device lifespan
• Esports network transmission configuration, WiFi 6E wireless network card + 2.5G wired network card, strong combination, making data transmission faster and more stable
• WiFi 6 high-speed configuration, 5.5 times the rate of ordinary WiFi 5

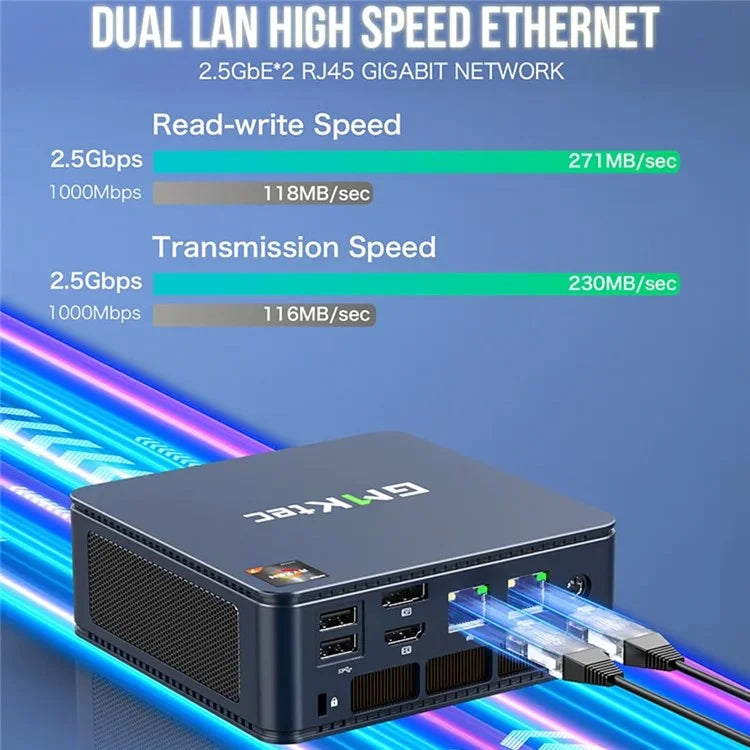

• Dual network interfaces, single speed up to 2.5Gbps, 2.5 times that of traditional Gigabit
• Supports synchronous 4K triple screen display output (HDMI1+DP1+type-c*1), multi-screen display/more perspectives
• Multiple interface configuration, HDMI/DP/LAN
• VESA hole bracket and VESA slot dual design, more convenient to use
• Security lock hole anti-theft design, more widely applicable

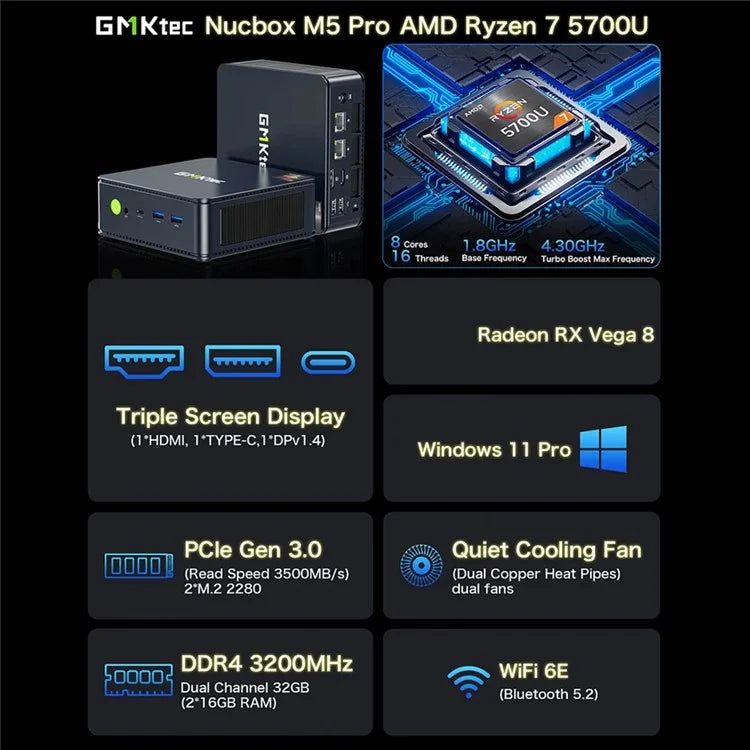

Specifications:

• The central processing unit (CPU):
• AMD Ryzen processor, 8 cores and 16 threads, maximum acceleration clock rate 4.3GHZ
• 7nm process FP6 package, 1.8G main frequency, MAX4.3G
• 4MB L2 Cache/8MB L3 Cache
• Zen 2 architecture TDP 10-35W, maximum peak value 35W
• CPU model: AMD Ryzen™ 7 5700U
• CPU Socket/Package: FP6 package size
• Image processor (GPU): AMD Radeon™ Graphics; 8-core 1900MHz graphics card frequency (equivalent to GTX750Ti independent graphics level)
• Memory/RAM shipment:
• SO-DIMM*2; shipped DDR4 3200
• 16GB/32GB; dual channel can support 64GB
• Maximum expandable memory size: SO-DIMM*2; MAX 64GB
• Storage/ROM shipment:
• PCIe 3.0 M.2 2280 SSD; 512GB, supports up to 2TB
• PCIe 4.0 can only read, not as fast as
• Maximum expandable built-in storage: MAX 2TB
• Display: without screen
• Graphics output: through dual HDMI+DP+type-c DP output, supporting a maximum resolution of 4096x2160
• Network:

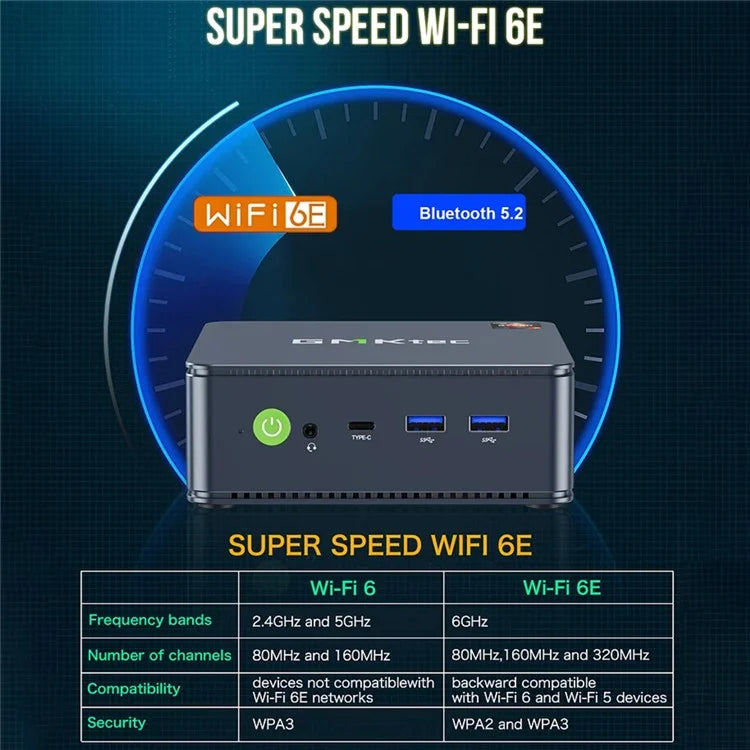

• WiFi 6/wifi 6E MediaTek RZ608 WIFI 6E 80MHZ
• WiFi transmission speed: maximum speed/2.4 Gbps
• 1BT5.2: MediaTek RZ608
• Power supply:
• Battery: built-in button battery
• Charger: DC IN 19V/3.42A
• Running score: 85W

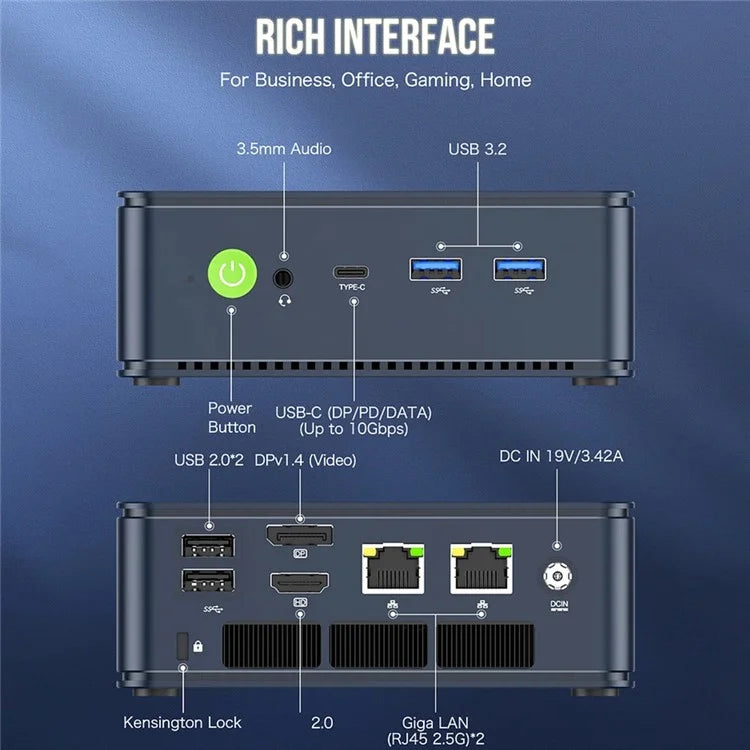

• Product appearance:
• USB-A: USB3.2 (Gen2*1)*2
• USB-A: USB2.0*2
• Video output: HDMI 2.0 (4K@60Hz)*1
• DP output: DisplayPort(4K@60Hz)*1
• TYPE-C: Type-C (USB 3.1 Gen2.PD, DP/Date), does not support power supply, full function
• Audio interface: ∮3.5mm, CTIA
• Charging interface: DC IN 5525 interface
• Ethernet port: Giga LAN (RJ45)*2 2.5G Intel Ethernet Controller 1225-v
• Reset: Reset*1 only performs system reset function when plugged in
• TF card: not supported
• Keyboard: supports external
• Indicator light: power indicator light white
• Body size: 128.8*127*47.8mm
• Body weight/bare metal weight: 528 grams
• Software and user experience
• Human-computer interaction mode: keyboard and mouse input
• Operating system: supports WINDOWS 11 pro/linux
• Language support: default English (simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic) 13 languages
• Battery life: external power supply
• System settings: press the Power button to boot (supports power-on boot, network wake-up, video memory modification, CPU power consumption settings, all can be set in the BIOS)
• Scenario application: mainly entry-level games/personal home use/small and medium-sized enterprises/intelligent manufacturing/creative design/smart retail/medical care/education/live broadcast, etc.
